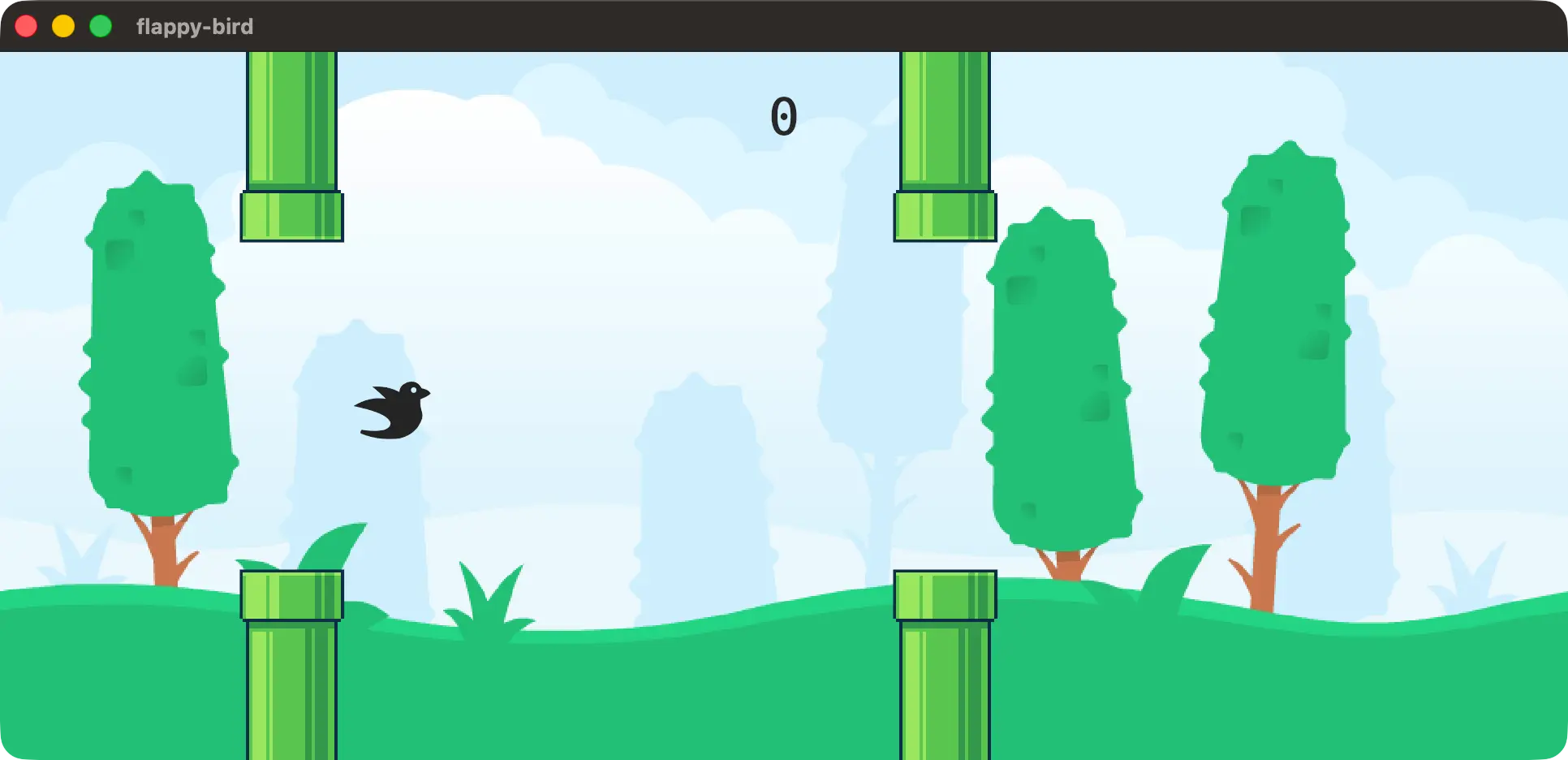

Cleanup and Polish

And that’s Flappy Bird!

Let’s finish off the application.

Turn the Gizmos off if you haven’t already in startup.

let (config, _) = config_store
    .config_mut::<DefaultGizmoConfigGroup>();
config.enabled = false;

And we can make the gap invisible by setting Visibility::Hidden on it.

(
    Visibility::Hidden,
    Sprite {
        color: Color::WHITE,
        custom_size: Some(Vec2::new(
            10.0, GAP_SIZE,
        )),
        ..default()
    },
    Transform::from_xyz(
        0.0,
        gap_y_position,
        1.0,
    ),
    PointsGate,
),

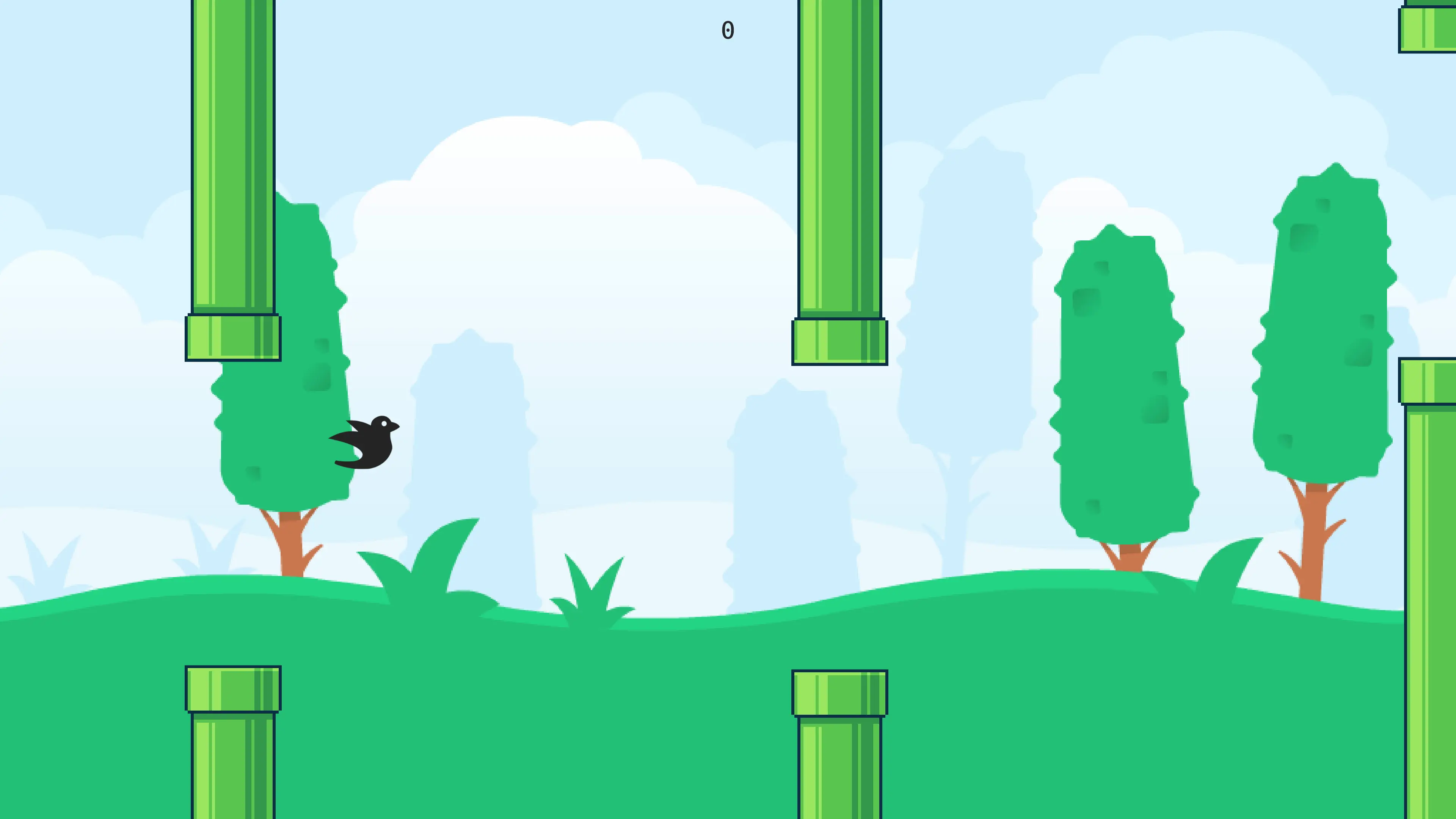

Moving the Pipes Vertically

The pipes in Flappy Bird are supposed to be in different positions. This can be accomplished more effectively using noise, but we’ll start off with just a sin wave.

Add the Time resource to spawn_pipes.

fn spawn_pipes(
    mut commands: Commands,
    asset_server: Res<AssetServer>,
    time: Res<Time>,
) { ... }

and use it to produce a sine wave. I multiply it here by an arbitrary number so that the output doesn’t look exactly periodic like a sine wave. The .sin function returns a value between -1 and 1, so multiplying that by one quarter of our CANVAS_SIZE height means it will move up and down a total of half the size of the canvas.

let gap_y_position = (time.elapsed_secs() * 4.2309875)
    .sin()
    * CANVAS_SIZE.y
    / 4.;

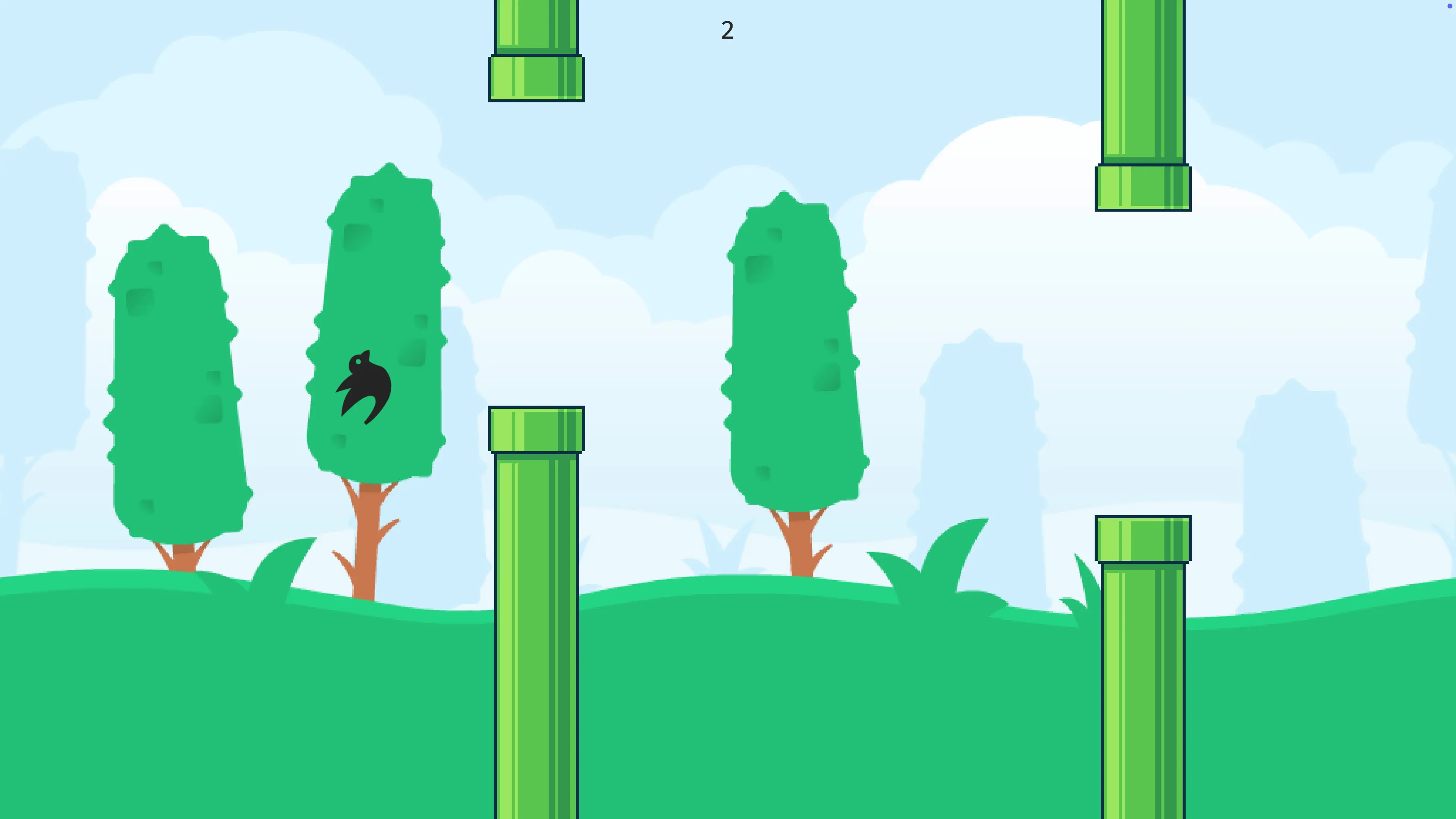

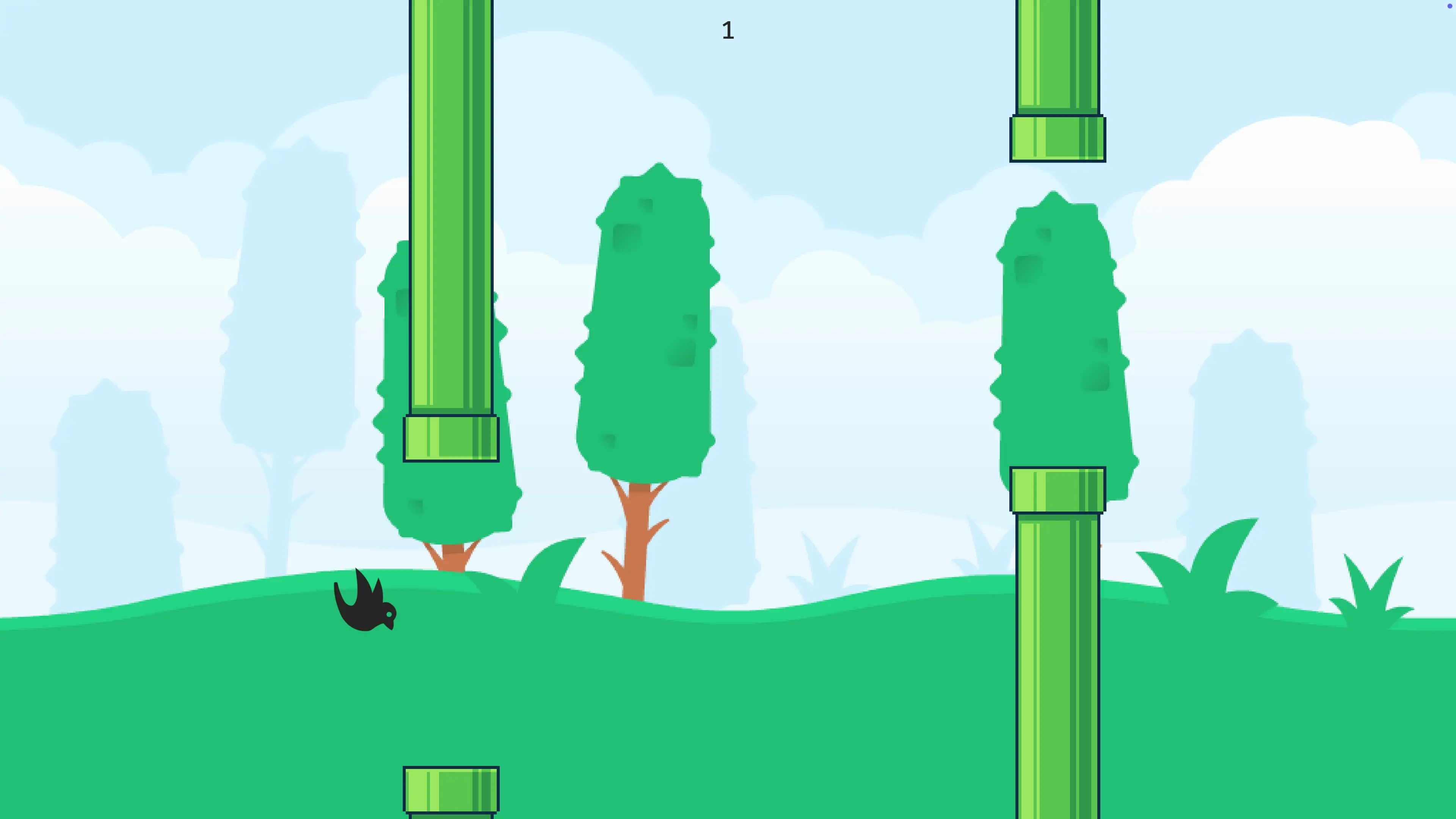

Pointing the Bird

Our bird doesn’t really move much either. We can add a little life by having it point in the direction of the arc it is following. Our pretend horizontal speed is PIPE_SPEED and our vertical speed is the velocity value.

Make PIPE_SPEED pub so we can use it in main.rs.

pub const PIPE_SPEED: f32 = 200.0;

Then we’ll use that value in a new enforce_bird_direction system. This system takes advantage of the fact that the angle of a 2d vector is just… that vector. So since our x and y speeds are already relative to our bird, we consider the bird to be the velocity vector’s local Vec2::ZERO. calculated_velocity - Vec2::ZERO is calculated_velocity. So we take advantage of glam’s Vec2::to_angle function (which uses atan2 under the hood), and make that a rotation around the Z axis, which is the one coming out of our screen.

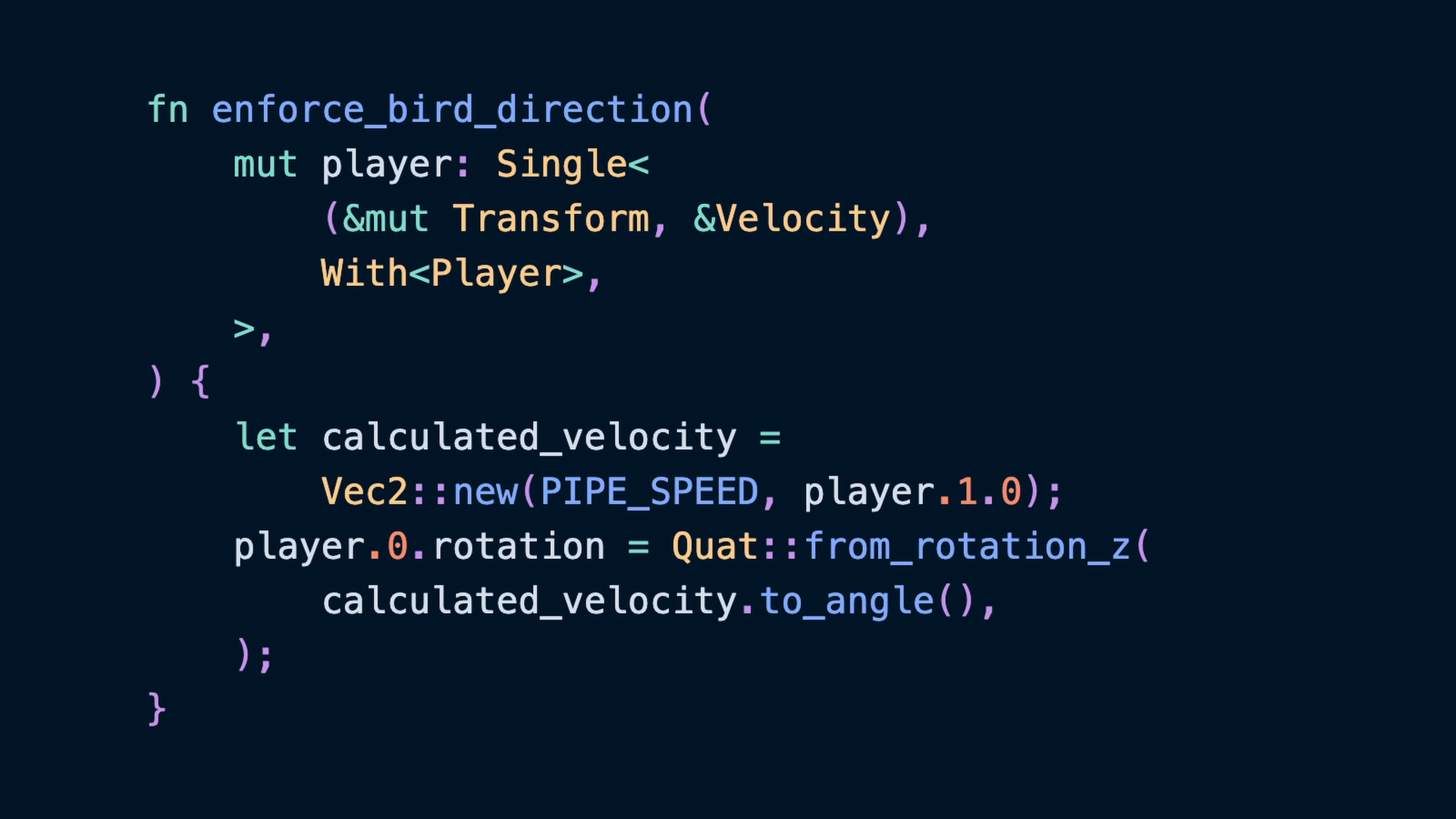

fn enforce_bird_direction(
    mut player: Single<
        (&mut Transform, &Velocity),
        With<Player>,
    >,
) {
    let calculated_velocity =
        Vec2::new(PIPE_SPEED, player.1.0);
    player.0.rotation = Quat::from_rotation_z(
        calculated_velocity.to_angle(),
    );
}

Since the system is only visual, and not gameplay related, we can put it in the Update schedule.

.add_systems(
    Update,
    (
        controls,
        score_update
            .run_if(resource_changed::<Score>),
        enforce_bird_direction,
    ),
)
